Marley

Marley small room fan / bathroom fan P10 MP 100 E up to 110 m³/h IP24

• protection: IP24 • inline fan • wall and ceiling mounting options


Item number 322421

immediately ready for dispatch, delivery time 2 - 3 days

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/10/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "GBP"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiOTAxMmM2ZDBjN2RjZjA4M2RhYTE0YzFiYTcyZmEyNDg5Yzg1ODc1ZGQ0ZjVhMTI4OTg2ODBjMWM4NzIyNDBmNnxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMjJUMTE6MDI6MDAuMDI4WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQVAxV3R3emp6UkNOcFE4SUtBTDJfUkhTOXRQT3hSVkdhanp6WGdTMG9LSzV5YTNmOC1ZQTExMmxNSkpkZmNBYXh5aW0taHdPTUFQWnF0c2otVnozMUJ6VHZHdXNRIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "GBP"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiOTAxMmM2ZDBjN2RjZjA4M2RhYTE0YzFiYTcyZmEyNDg5Yzg1ODc1ZGQ0ZjVhMTI4OTg2ODBjMWM4NzIyNDBmNnxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMjJUMTE6MDI6MDAuMDI4WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQVAxV3R3emp6UkNOcFE4SUtBTDJfUkhTOXRQT3hSVkdhanp6WGdTMG9LSzV5YTNmOC1ZQTExMmxNSkpkZmNBYXh5aW0taHdPTUFQWnF0c2otVnozMUJ6VHZHdXNRIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('67406f05eaca9', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('67406f05eaca9', 'paypal', 'buynow', 'rect', 'gold'); }

* Incl. VAT excl. Shipping

Dimensions and technical details

  • 230 Volt / 50 Hertz
  • Colour: white
  • Type: axial fan
  • Model: inline fan
  • Delivery includes mounting kit for installation between two pipes
  • Mounting options: wall or ceiling
  • Ideal for long airways
  • Used as supply or exhaust fan depending on installed position
  • Protection class: II (double protective insulation)
  • Protection code: IP24
  • Power consumption: 15 Watt
  • Max. air way: 3.0 m
  • Max. output pressure: 50 Pa
  • Max. sound pressure: 29 dB(A)
  • Max. air temperature: 40°C
  • Dimensions: 99 Ø x 145 mm
  • Connection to ducts: Ø 100 mm
  • Weight: 0.70 kg

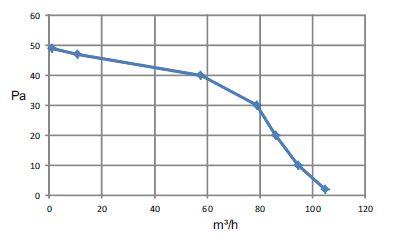

Pressure - volume characteristic diagram

Marley in line fan P10 MP 100 E characterstic diagram

Connection diagram

Marley in line fan P10 MP 100 E connection diagram
