Vortice Roof fan Chimney fan range Camino up to 1200m³/h IP54

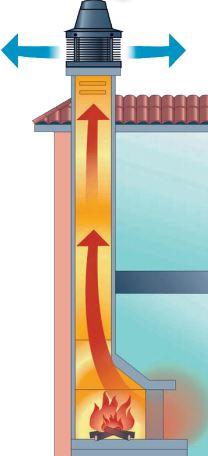

• roof-mounted / chimney fan, 4-pin, with heat shield • Camino range ensures clean extraction of the flue gas • insulation class F, IP54 rating • different models available: Tiracamino,Tiracamino-GR, Turbocamino • housing made of galvanised steel sheet
Item number 825548
delivery time up to 30 days
* Incl. VAT excl. Shipping
Dimensions and technical details
- 220 - 240 Volt, 50 Hertz
- Self-cooling, ball-bearing induction motor with thermal overload protection
- 4-pin with heat shield
- Different models available: Tiracamino, Tiracamino-GR, Turbocamino
- Turbocamino: Equipped with an aluminium weather protection hood and mounting base
- Turbocamino-GR: Equipped with stainless steel mounting base
- Housing made of galvanised steel sheet, resistant to corrosion and weather, powder-coated
- Insulation class F, IP54 rating
- Centifugal impeller, backward curved, made of galvanised steel sheet, high airflow and pressure resistance
- Impeller mounted directly to the motor shaft, dynamically balanced
- Protective grille (electrically welded steel, epoxy paint finish) prevents accidental touch and can be detached during maintenance and cleaning work
- Robust steel safety wire between base and motor (anchoring the appliance once installed)
- Max. temperature for continuous operation: +200°C
Attention: Do not use in gas-fired heating systems!

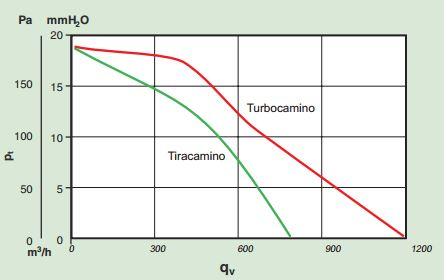

Model | Max. wattage (W) | Max. current consumption (A) | Max. airflow (m³/h) | Total pressure Pmax. (Pa) | Sound pressure Lp-3m (dB(A)) | Intake port ø (mm) | Weight (kg) |
Tiracamino | 120 | 0.50 | 750 | 186 | 52.0 | 170 | 14.3 |
Tiracamino-GR | 120 | 0.50 | 750 | 186 | 52.0 | 170 | 16.3 |
Turbocamino | 110 | 0.60 | 1200 | 187 | 52.5 | 175 - 225 | 15.1 |
Dimensions in mm
Accessories are available in our shop.
